Electronic flowmeters from
Hoffer Flow Controls

HIT4G DIGITAL GAS FLOW COMPUTER WITH MODBUS AND DATA LOGGING

The HIT-4G is a compact digital gas flow computer with temperature, pressure, and compressibility compensation.

• Full front panel operation with magnetic pointer through the enclosure.
• Up to 20-point linearization to correct for flowmeter non-linearity.
• 4-20mA analog output proportional to flow rate.
• Optional scaled pulse or raw pulse output representing an incremental total volume.
• Configuration and Totals stored in non-volatile memory.
• Data Logging: Hourly Total, Daily Total, Event Logs.

HIT-4L TEMPERATURE & PRESSURE FLOW COMPUTER FOR LIQUIDS

The HIT-4L is a compact digital flow computer for LIQUIDS with temperature, pressure, and viscosity compensation.

• Temperature, Pressure, and Viscosity Compensation.
• LCD for total, rate, temperature, and pressure.
• CSA/ATEX/IECEx hazardous location certifications are available.
• Data Logging: Hourly Total, Daily Total, Event Logs.
• Full front panel operation with magnetic pointer through the enclosure.
• 4-20mA analog output proportional to flow rate.
• Alarm output with dual set point configurable for Rate or Total.

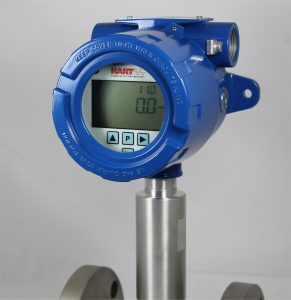

HRT1 RATE INDICATOR / DUAL TOTALIZER WITH HART® COMMUNICATIONS PROTOCOL

• HART® Field Communication Protocol.
• 5 Digit Rate, 8 Digit Totalizer LCD with configurable decimal point location.
• 8 Digit, Non-resettable Grand Total display.
• Pulse Input supports turbine as well as many other pulse generating flowmeters.
• 4-20mA analog output.
• Up to 20 Point Linearization.
• Optional scaled pulse output representing an increment of volume for each pulse.
• Two Optional Alarm Outputs are configurable for Rate or Total.
• Magnetically operated reed switch for Total reset.

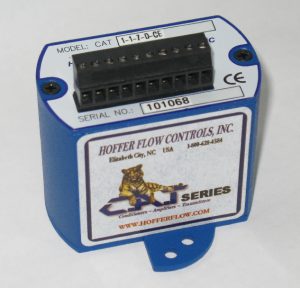

CAT 1 MICROPROCESSOR CONTROLLED 2-WIRE LOOP POWERED TRANSMITTER

Cat1 Microprocessor | The CAT1 is a microprocessor-controlled 2-wire 4-20mA transmitter.

The CAT1 converts a low-level frequency signal from a flowmeter sensor into an analog 4-20 mA output. The output is proportional to the flow rate.

• Loop powered 4-20mA.
• Up to 20-point linearization.
• Windows configuration software.

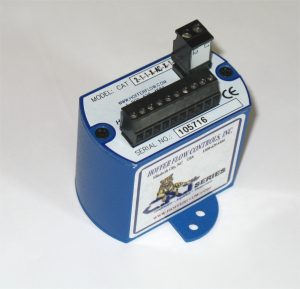

CAT 2 VERSATILE DC OR AC TRANSMITTER

CAT 2 Versatile DC AC Transmitter | The CAT2 is a versatile DC or AC-powered transmitter interface with any Hoffer flow sensor.

The CAT2 provides a pulse output and analog signal proportional to the flow rate and can be configured with high and low alarms.

• DC or AC powered transmitter.
• Pulse and analog output.
• Optional hi and low alarms.

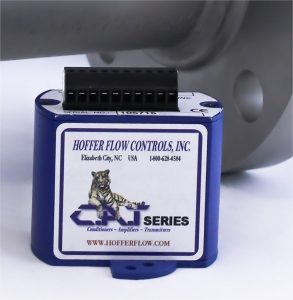

CAT3 DC OR AC POWERED MICROPROCESSOR CONTROLLED TRANSMITTER

CAT3 DC AC Microprocessor | The CAT3 is a DC or AC-powered microprocessor-controlled transmitter. It outputs a pulse scaled per unit of flow, and an analog signal proportional to flow rate.

• DC or AC powered transmitter.
• Pulse and analog output scaled per unit of measure.
• Flowmeter linearization.
• Optional hi and low alarms.
• Windows configuration software.

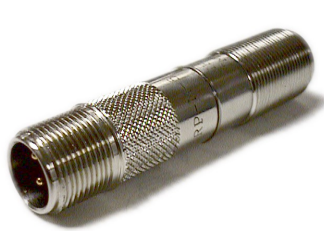

REDI-PULSE PICKUP COIL

• Pickup coil includes a self-contained preamplifier which provides a conditioned pulse output.
• Eliminates peripheral signal conditioning modules and associated junction boxes.
• Economical when compared to standard signal conditioning modules.
• Certified with CE mark for compliance with EMC Directive
• 89/336/EEC.
• Operates from DC voltage.
• Conditioned pulse output may be transmitted up to 5,000 feet .

INTRINSICALLY SAFE REDI-PULSE PICKUP COIL

• Intrinsic Safety to CSA (with NRTL/C), CENELEC and ATEX.
• Pickup coil includes a self-contained preamplifier which provides a conditioned pulse output.
• Both magnetic and modulated carrier pickup coils are available.
• Eliminates peripheral signal conditioning modules and associated junction boxes.
• Economical when compared to standard signal conditioning modules.
• Certified with CE mark for compliance with EMC Directive 2004/108/EC.
• Operates from DC voltage.
• Conditioned pulse output may be transmitted up to 5,000 feet

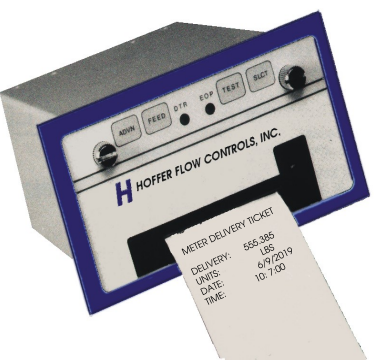

Nova Flow & Flowstar Series Compact Printers

• Compact Size
• Full 256 Character ASCII Set Epson Compatible Graphics
• Permanent Impact Printing
• Built-in Software Clock/Calendar
• Front Access for ribbon and printer
• Unit fully supported in rack during ribbon paper replacement

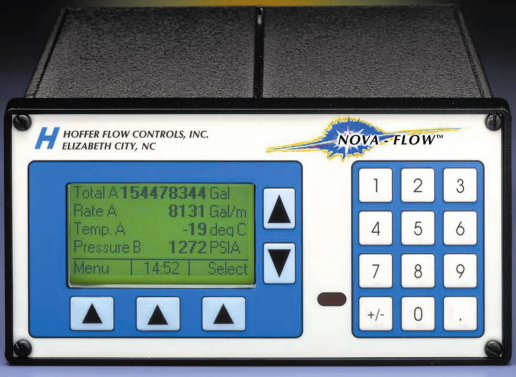

Nova Flow Computer, Plug-N-Flow Architecture For Liquids & Gases

• Single & Multi-Channel Flow Computers
• Batch Controllers
• Energy Calculators

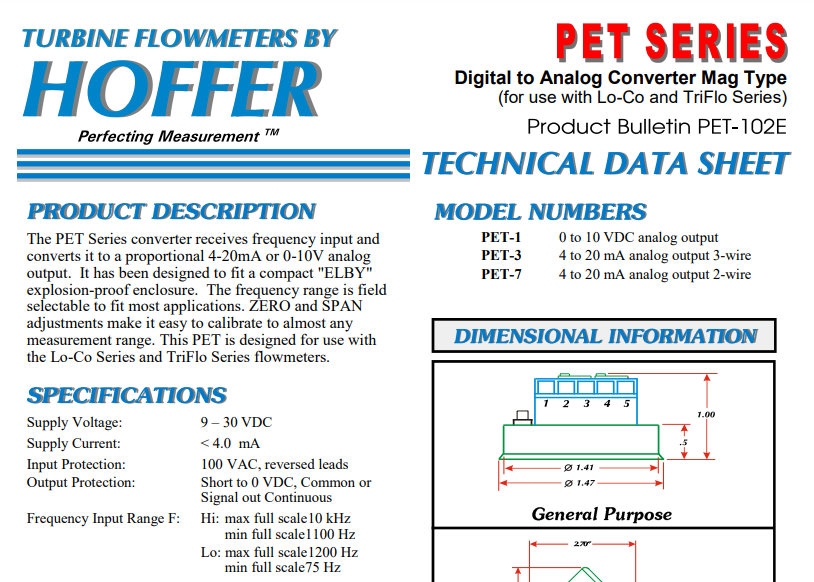

Pet Series Digital To Analog Converters

The PET Series converter receives frequency input and
converts it to a proportional 4-20mA or 0-10V analog
output.

It has been designed to fit a compact “ELBY”
explosion-proof enclosure. The frequency range is field selectable to fit most applications.

ZERO and SPAN
adjustments make it easy to calibrate to almost any
‘measurement range.

This PET is designed for use with
the Lo-Co Series and TriFlo Series flowmeters.

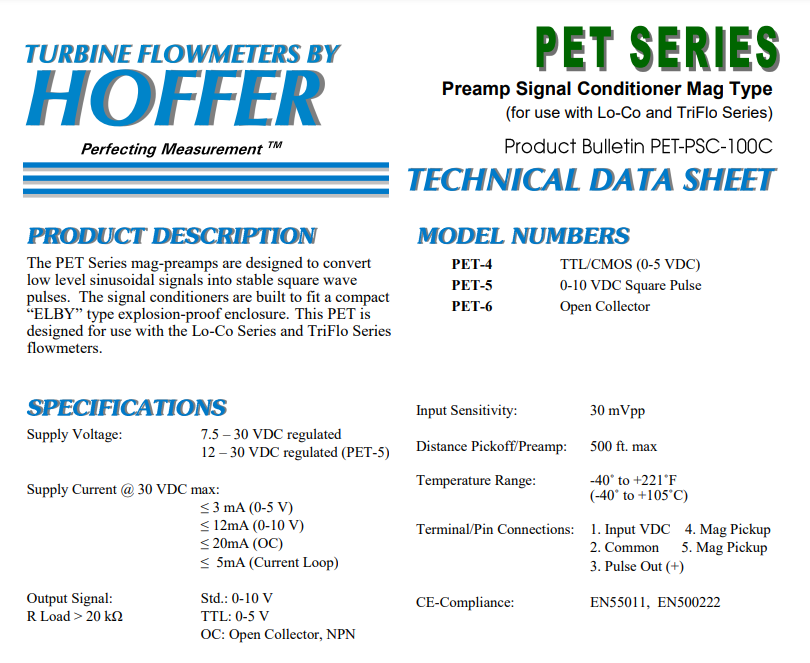

Pet Series Preamp Signal Conditioners

The PET Series mag-preamps are designed to convert low level sinusoidal signals into stable square wave
pulses.

The signal conditioners are built to fit a compact
“ELBY” type explosion-proof enclosure.

This PET is designed for use with the Lo-Co Series and TriFlo Series
flowmeters.
